Projecting Osteogenic Datasets onto Differentiation Atlas and OPCST Model Using TrajAtlas#

We have recently developed a reference atlas for osteogenesis and constructed a model to reconstruct the transformation of various osteoprogenitor cells (OPCs) into osteoblasts. In this tutorial, we will demonstrate how to project osteogenic datasets onto our atlas and utilize our models for analysis.

To learn about OPCs and Differentiation Atlas, please read Differentiation Atlas

Import packages & data#

We utilized datasets obtained from GSE210584 for our study. In this research conducted by Kira Young, the investigation focused on age-related changes in the bone marrow microenvironment between young mice (2-4 months old) and middle-aged mice (12-14 months old). This dataset provided valuable insights into the age-related alterations in osteogenesis within the bone marrow.

import scanpy as sc
import pandas as pd
import TrajAtlas as tja

adata=sc.read("../data/trajAtlas_age_young.h5ad")

Ensure that your datasets include a “sample” column to record sample information and a layer “counts” to store raw counts information.

adata.layers["counts"][0:5,0:5].toarray()

array([[0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 3.],
       [0., 0., 0., 0., 1.]])

adata.obs[['group', 'sample']]

	group	sample
AAACCCATCCAATCCC-1_1	MA	BmscAging_Young_MA1
AAACCCATCTCAGTCC-1_1	MA	BmscAging_Young_MA1
AAACGCTAGTATGACA-1_1	MA	BmscAging_Young_MA1
AAACGCTGTACGAGCA-1_1	MA	BmscAging_Young_MA1
AAAGAACCAACCCTCT-1_1	MA	BmscAging_Young_MA1
...	...	...
TTTGATCAGAGCTTTC-1_14	Young	BmscAging_Young_Young5
TTTGATCGTAAGAACT-1_14	Young	BmscAging_Young_Young5
TTTGATCTCACCTGTC-1_14	Young	BmscAging_Young_Young5
TTTGGTTTCTCTCCGA-1_14	Young	BmscAging_Young_Young5
TTTGTTGAGGCCACCT-1_14	Young	BmscAging_Young_Young5

Projection#

We utilized scArches to project datasets to our Differentiation Atlas.

adata=tja.model.ProjectData(adata)

Total number of genes needed for mapping: 1500
Number of genes found in query dataset: 1446

`Trainer.fit` stopped: `max_epochs=100` reached.

Epoch 100/100: 100%|██████████| 100/100 [04:03<00:00,  2.43s/it, loss=719, v_num=1]

sc.pp.neighbors(adata,use_rep="scANVI")
sc.tl.umap(adata)

In our study, we developed an OsteoProgenitor Cell-Specific Trajectory (OPCST) Model to reconstruct the osteoblast differentiation process.Our common pseudotime accurately reflects the osteogenesis process. Additionally, we constructed a regression model to predict the common pseudotime across different OPCSTs, enabling users to easily predict osteogenesis progression.

adata=tja.model.pseduo_predict(adata)

Total number of genes needed for mapping: 2146
Number of genes found in query dataset: 2070

/home/gilberthan/anaconda3/envs/scarches/lib/python3.8/site-packages/anndata/_core/merge.py:1111: UserWarning: Only some AnnData objects have`.raw` attribute, not concatenating `.raw` attributes.
  warn(

We used knn model for transform seven-level annotation system and OPCST path to datasets.

adata=tja.model.label_transfer(adata)

finished!

adata

AnnData object with n_obs × n_vars = 15079 × 22076
    obs: 'orig.ident', 'nCount_RNA', 'nFeature_RNA', 'percent_mito', 'RNA_snn_res.0.5', 'seurat_clusters', 'group', 'sample', 'pseduoPred', 'pred_level1_anno', 'pred_level2_anno', 'pred_level3_anno', 'pred_level4_anno', 'pred_level5_anno', 'pred_level6_anno', 'pred_level7_anno', 'pred_lineage_fibro', 'pred_lineage_lepr', 'pred_lineage_msc', 'pred_lineage_chondro'
    var: 'vst.mean', 'vst.variance', 'vst.variance.expected', 'vst.variance.standardized', 'vst.variable'
    uns: 'neighbors', 'umap'
    obsm: 'scANVI', 'X_umap'
    layers: 'counts'
    obsp: 'distances', 'connectivities'

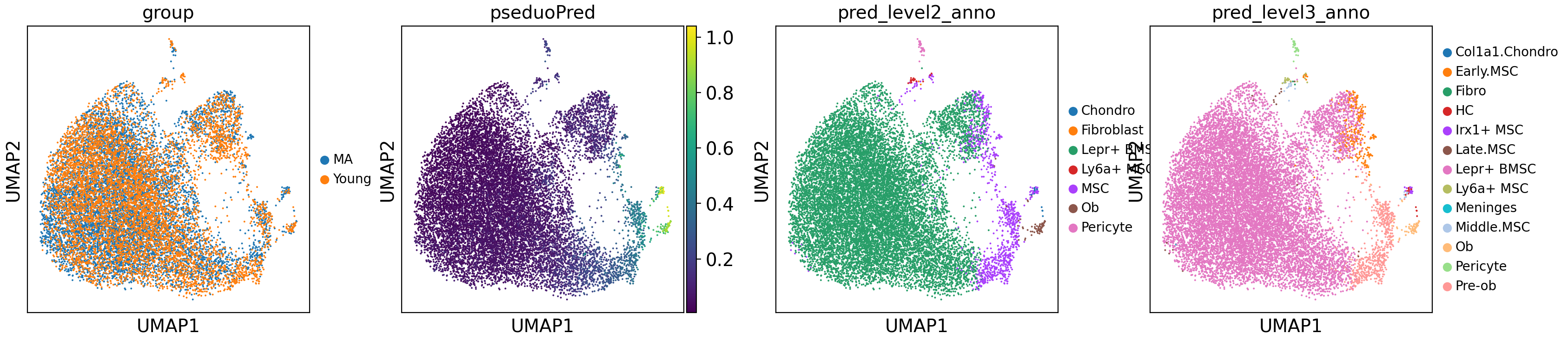

sc.pl.umap(adata,color=["group","pseduoPred","pred_level2_anno","pred_level3_anno"])

/home/gilberthan/anaconda3/envs/scarches/lib/python3.8/site-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  cax = scatter(
/home/gilberthan/anaconda3/envs/scarches/lib/python3.8/site-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  cax = scatter(
/home/gilberthan/anaconda3/envs/scarches/lib/python3.8/site-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  cax = scatter(

png

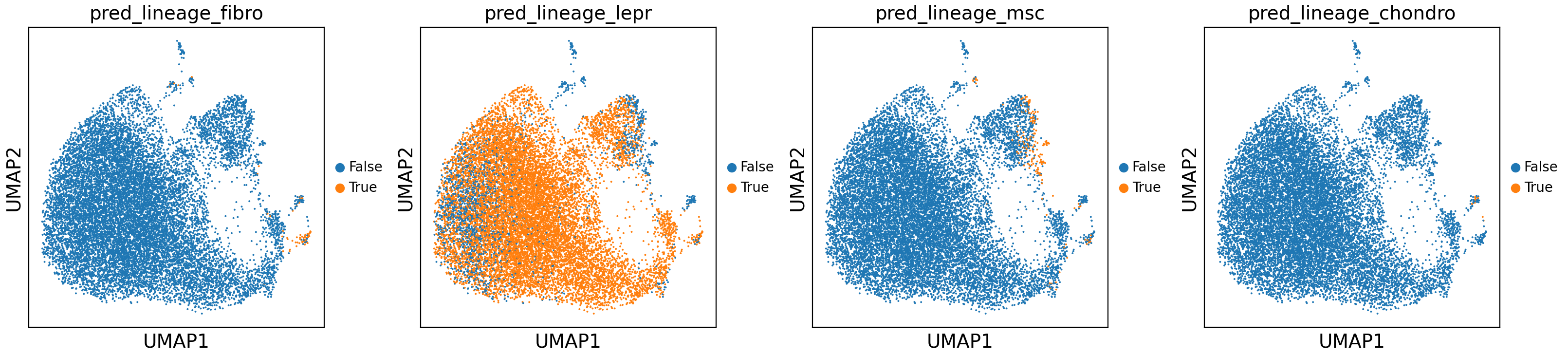

sc.pl.umap(adata,color=['pred_lineage_fibro', 'pred_lineage_lepr', 'pred_lineage_msc', 'pred_lineage_chondro'])

/home/gilberthan/anaconda3/envs/scarches/lib/python3.8/site-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  cax = scatter(
/home/gilberthan/anaconda3/envs/scarches/lib/python3.8/site-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  cax = scatter(
/home/gilberthan/anaconda3/envs/scarches/lib/python3.8/site-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  cax = scatter(
/home/gilberthan/anaconda3/envs/scarches/lib/python3.8/site-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  cax = scatter(

png

From the figure above, it is evident that our datasets primarily consist of LepR+ BMSC OPCST. As our focus lies solely on the osteogenesis process, we subtracted the LepR+ BMSC lineage from these datasets.

adata=tja.model.substractLineageAdata(adata,["LepR_BMSC"])

Visualize pseudotemporal gene expression patterns across multiple trajectories.#

In our study, we extracted three characteristics from the pseudotemporal gene expression pattern: peak, correlation, and expression. We have demonstrated that these three characteristics can effectively reconstruct gene expression patterns. Utilizing these characteristics offers a method to visualize gene expression patterns across multiple trajectories.

lineageCell = adata.obs_names[adata.obs["pred_lineage_lepr"]]
tvMap=tja.utils.getAttributeBase(adata,axis_key="pseduoPred", sampleKey="sample",subsetCell=lineageCell,njob=10)

0%|          | 0/10 [00:00<?, ?it/s][A
100%|██████████| 10/10 [00:00<00:00, 12.43it/s][A

tvMap

MuData object with n_obs × n_vars = 10 × 66228
  3 modalities
    corr:	10 x 22076
      layers:	'mod'
    expr:	10 x 22076
      layers:	'mod'
    peak:	10 x 22076
      layers:	'mod'

We devised a muon object to store these expression characteristics, comprising three modalities: corr (correlation), peak, and expr (expression), each representing a distinct aspect of the data.

groupObs=adata.obs[["sample","group"]].drop_duplicates()

groupObs.index=tvMap.obs_names

groupObs

	sample	group
BmscAging_Young_MA1_sep_LepR_BMSC	BmscAging_Young_MA1	MA
BmscAging_Young_MA2_sep_LepR_BMSC	BmscAging_Young_MA2	MA
BmscAging_Young_MA3_sep_LepR_BMSC	BmscAging_Young_MA3	MA
BmscAging_Young_MA4_sep_LepR_BMSC	BmscAging_Young_MA4	MA
BmscAging_Young_MA5_sep_LepR_BMSC	BmscAging_Young_MA5	MA
BmscAging_Young_Young1_sep_LepR_BMSC	BmscAging_Young_Young1	Young
BmscAging_Young_Young2_sep_LepR_BMSC	BmscAging_Young_Young2	Young
BmscAging_Young_Young3_sep_LepR_BMSC	BmscAging_Young_Young3	Young
BmscAging_Young_Young4_sep_LepR_BMSC	BmscAging_Young_Young4	Young
BmscAging_Young_Young5_sep_LepR_BMSC	BmscAging_Young_Young5	Young

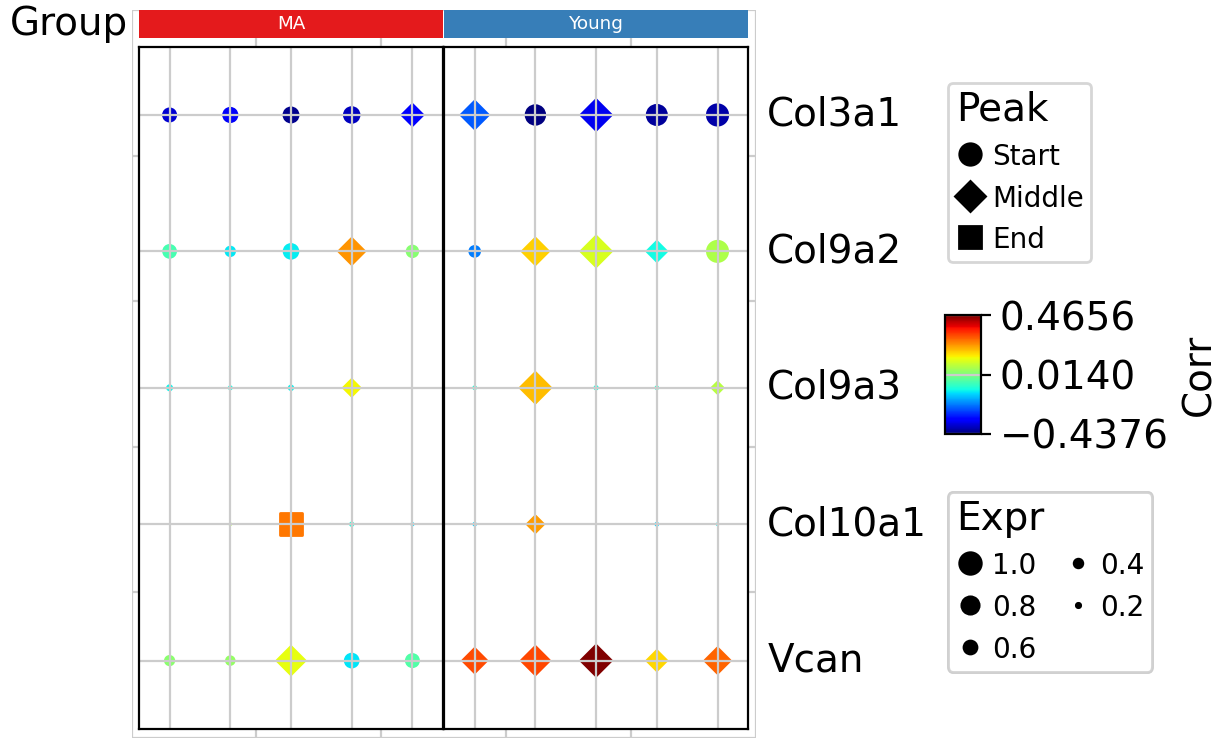

We employed PyComplexHeatmap to generate a dot plot, allowing the selection of genes and samples for visualization. Specifically, we chose genes associated with Extracellular Matrix Organization. Our study revealed that these genes exhibit upregulation during the entire differentiation process in the young age of LepR+ BMSCs.

dotDf=tja.utils.makeDotTable(tvMap,gene=["Col3a1","Vcan","Col10a1","Col9a3","Col9a2"],
                             sample=tvMap.obs_names)

import PyComplexHeatmap as pch
col_ha = pch.HeatmapAnnotation(Group=pch.anno_simple(groupObs['group'],cmap='Set1',legend=False,add_text=True),
                           verbose=0,label_side='left',label_kws={'horizontalalignment':'right'})

tja.utils.trajDotplot(dotDf,col_split=groupObs['group'],top_annotation=col_ha)

Starting plotting..
Starting calculating row orders..
Reordering rows..
Starting calculating col orders..
Reordering cols..
Plotting matrix..
Collecting legends..
Plotting legends..
Estimated legend width: 12.172222222222222 mm
Incresing ncol

1710848782627

This result is highly consistent with our research findings. We observed a distinct expression pattern between these two groups.
